DSC mini
DIGITAL TO ANALOGUE CONVERTER
Native I2S, straight from DSS 2.
DSC mini converts. In the Digital Sharing format, with an I2S input that takes the signal from DSS 2 unaltered.
An ES9026PRO conversion processor, PCM up to 384 kHz in 32-bit, DSD up to DSD512 in native. Five digital inputs, analogue out on RCA and XLR, and a 3.5-inch display on the front.
The I2S input is the one to use with DSS 2: the clock and the data travel separately, with no intermediate format. The 250 mm chassis matches the rest of the range, to be stacked or set side by side.
Key features
ES9026PRO
THD+N -110 dB · S/N 124 dB
DSD 512
PCM 384 kHz / 32 bits native
Native I2S
Direct link with DSS 2
250 mm
Digital Sharing format
Specifications
Datasheet (PDF)
CONVERSION
- Reference
- ES9026PRO
- THD+N
- -110 dB
- Dynamic range
- S/N 124 dB

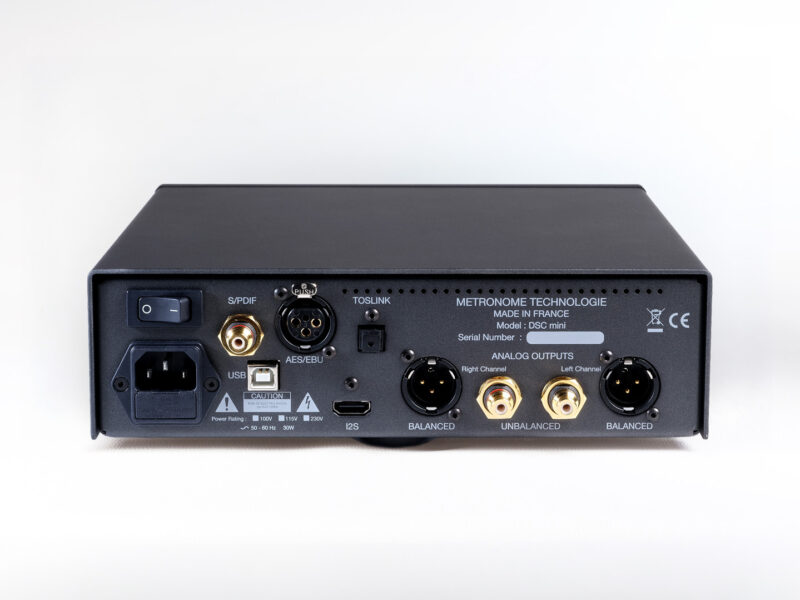

DIGITAL INPUTS
- S/PDIF
- PCM 44.1–384 kHz/32-bit — DSD64–128 DoP
- AES/EBU
- PCM 44.1–384 kHz/32-bit — DSD64–128 DoP
- Toslink
- PCM 44.1–192 kHz/32-bit — DSD64 DoP
- USB
- PCM 44.1–384 kHz/32-bit — DSD64–512 Native
- I2S
- PCM 44.1–384 kHz/32-bit — DSD64–256 Native
ANALOGUE OUTPUTS
- RCA
- 100 Ω — 3 V max (0 dB)
- XLR
- 150 Ω — 3 V max (0 dB)
GENERAL
- Display
- 3.5-inch — 320×240
- Power consumption
- 15 W
- Dimensions
- 250 × 70 × 250 mm
- Weight
- 4.8 kg

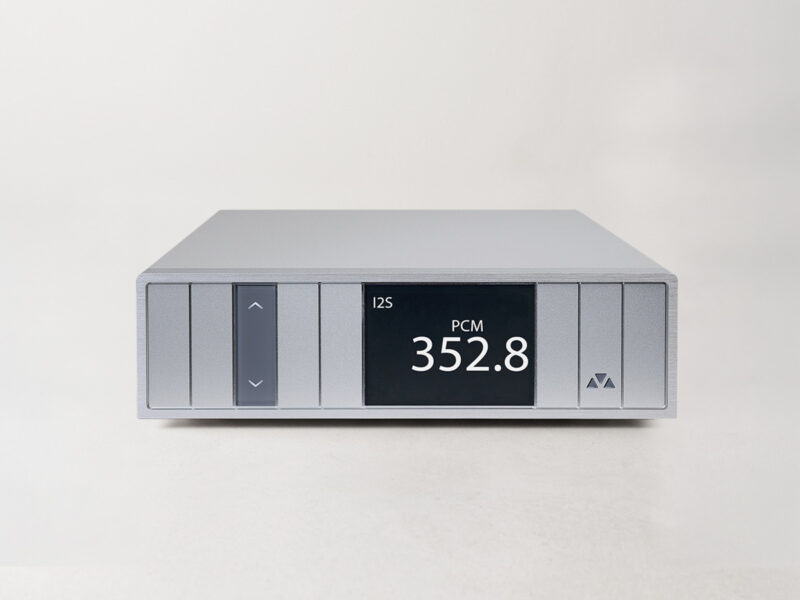

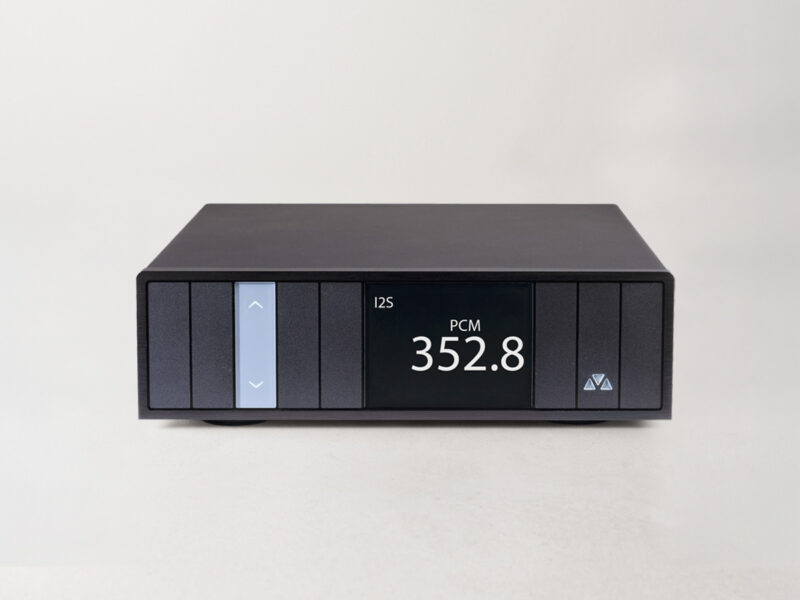

Finishes
MANUFACTURED IN FRANCE

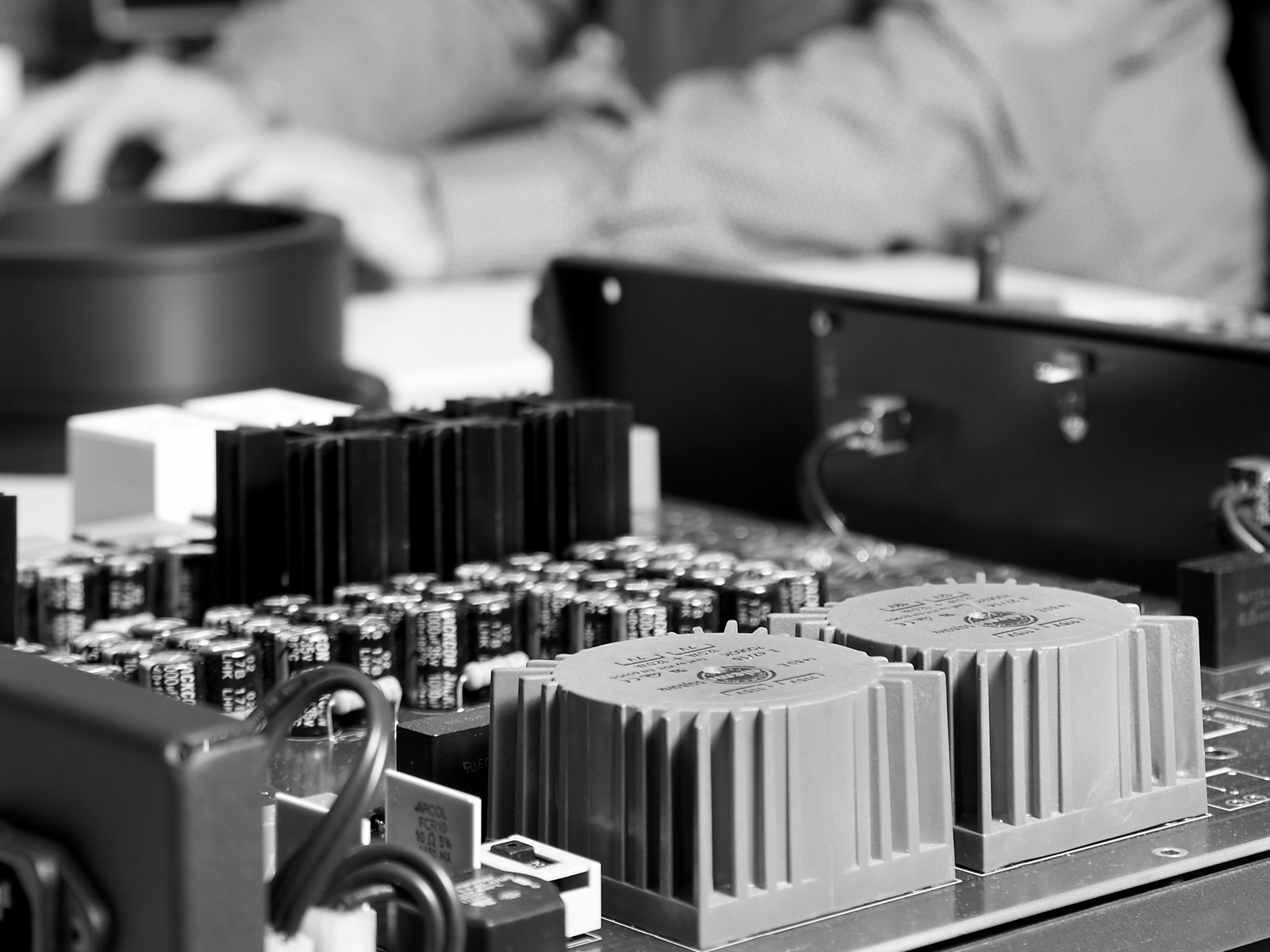

ONE BENCH, ONE UNIT
A single technician assembles, wires and listens to the same unit from start to finish, in our workshop in the Tarn.
